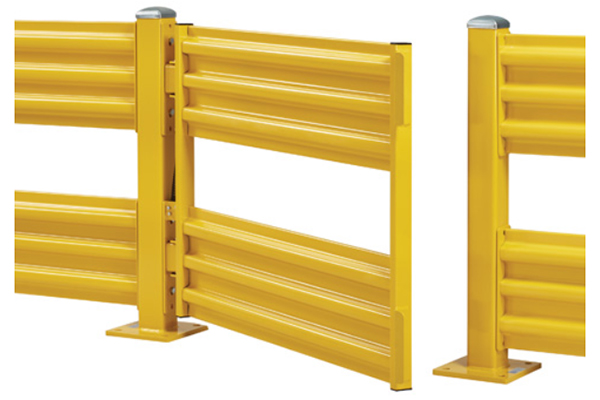

Steel King: Self-Closing Safety Gates

Steel King’s self-closing safety gates add versatility to your steel guard rail systems.

Steel King’s self-closing steel safety gates use heavy, 11-gauge corrugated steel rails and are designed to fit a 48” post-to-post center line within a protective railing system. Gates are available for both the Steel Guard® and Armor Guard® railing systems.

Standard sizes are available in our 48 Hour Quick Ship program.

Gates can be ordered as part of a new installation or retro-fitted into an existing system.

Steel King’s Self-Closing Safety gates use heavy, 11-gauge corrugated steel rails and are designed to fit a 48” post-to-post center line within a protective railing system.  The gate is shipped with hinge assembly on one side of the gate and two gate stops on the opposite side. The Safety Gates are easily installed without cutting, welding or drilling.

Steel King’s Self Closing Gate’s swing direction is versatile which allows you to re-purpose gates as required.  Changing the direction of the gate is as simple as removing a few bolts and flipping the gate in the direction needed.  The gate opens to a 90 degree angle.  Steel spring automatically closes gate after passage is complete.

• Powder coat finish (yellow) – highly visible, durable and UV resistant
• Hinge assembly and gate stops assembled on gate
• Versatile: Gate can be turned/flipped to achieve proper opening
• Easy installation, no cutting, welding or drilling required
• All hardware and end caps included.
• Available in Steel King’s 48-Hour Quick Ship Program

Steel Guard Features:

• Rails: Corrugated 11-gauge steel, 14-1/2” high x 2-1/2” deep, three ribs
• Gate Dimensions: 38-1/2” tall and 43-3/4” wide

Armor Guard Features

• Rails: Corrugated 11-gauge steel, 9-3/4”” high x 2-1/2” deep, two ribs
• Gate Dimensions: 38-1/2” tall and 43-3/4” wide
