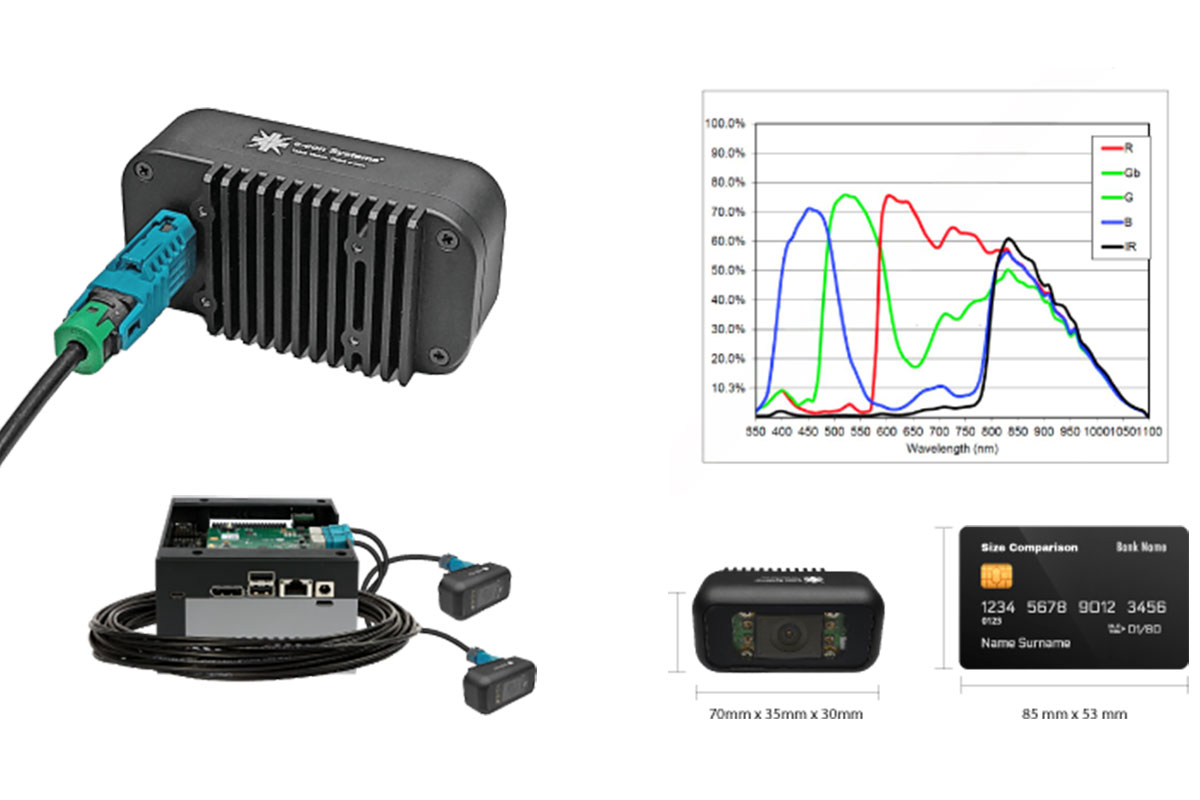

E-con Systems STURDeCAM57_CUOAGX camera

The STURDeCAM57_CUOAGX from e-con Systems is a 5MP visible light and infrared (RGB-IR) global shutter camera designed for driver monitoring systems (DMS) and occupant monitoring systems (OMS).

Built on a 5MP sensor, it features an RGB-IR CFA pattern that enables simultaneous capture of visible and infrared images - making it highly effective in both daytime and low-light conditions.

Detect faces, gaze, and driver behavior

With 2.2µm pixel size and advanced NIR sensitivity, the camera ensures reliable detection of facial features, eye gaze, and driver behavior even in challenging lighting scenarios.

The global shutter architecture eliminates motion artifacts, making it ideal for dynamic automotive environments.

The camera integrates a 940 nanometer IR LED for consistent illumination in complete darkness, enabling accurate monitoring without external lighting.

Coaxial GMSL2 interface, IP67-rated enclosure

Its GMSL2 interface allows high-speed transmission of video, control data, and power over a single coaxial cable up to 50 feet, simplifying system design.

Housed in a rugged IP67-rated enclosure, this compact GMSL camera is built for durability and flexibility in automotive and industrial deployments.

It is fully compatible with the NVIDIA Jetson AGX Orin platform, making it ideal for AI-based edge vision applications such as DMS, OMS, and in-cabin monitoring systems.

Certifications

The STURDeCAM57_CUOAGX has been certified to meet the following standards:

• FCC Part 15, Subpart B, Class B
• CISPR 32
• CISPR 25
• ISO 11452-2, 11452-4 , 13766-1, 14982, 16750-3, 16750-4, 61000-4-3

Software

Linux camera driver

• Full-fledged Linux camera driver for STURDeCAM57_CUOAGX with NVIDIA Jetson AGX ORIN developer kit. The camera driver source code can be ported to any NVIDIA AGX ORIN platform.

Supported Jetpack & L4T Version

• NVIDIA Jetson AGX Orin - JetPack 6.2 (L4T 36.4.3)

V4L2 Linux driver for MIPI CSI-2 camera module

• Video preview
• Still Image capture
• Camera controls via IOCTLs

Sample application with source Code for Linux

• Video preview
• Still Image capture at selected resolutions

Camera Controls

• Brightness (RGB)
• Saturation (RGB)
• Sharpness (RGB)
• Auto Exposure (RGB & IR)
• Absolute Exposure Time (RGB & IR)
• Gain (RGB & IR)

How to purchase

Interested parties can purchase the STURDeCAM57 through e-con Systems’ website.

E-con Systems offers customization services and end-to-end integration support for cameras and compute boxes, ensuring that unique application requirements can be easily met. For customization or integration support, please contact the company at [email protected].
