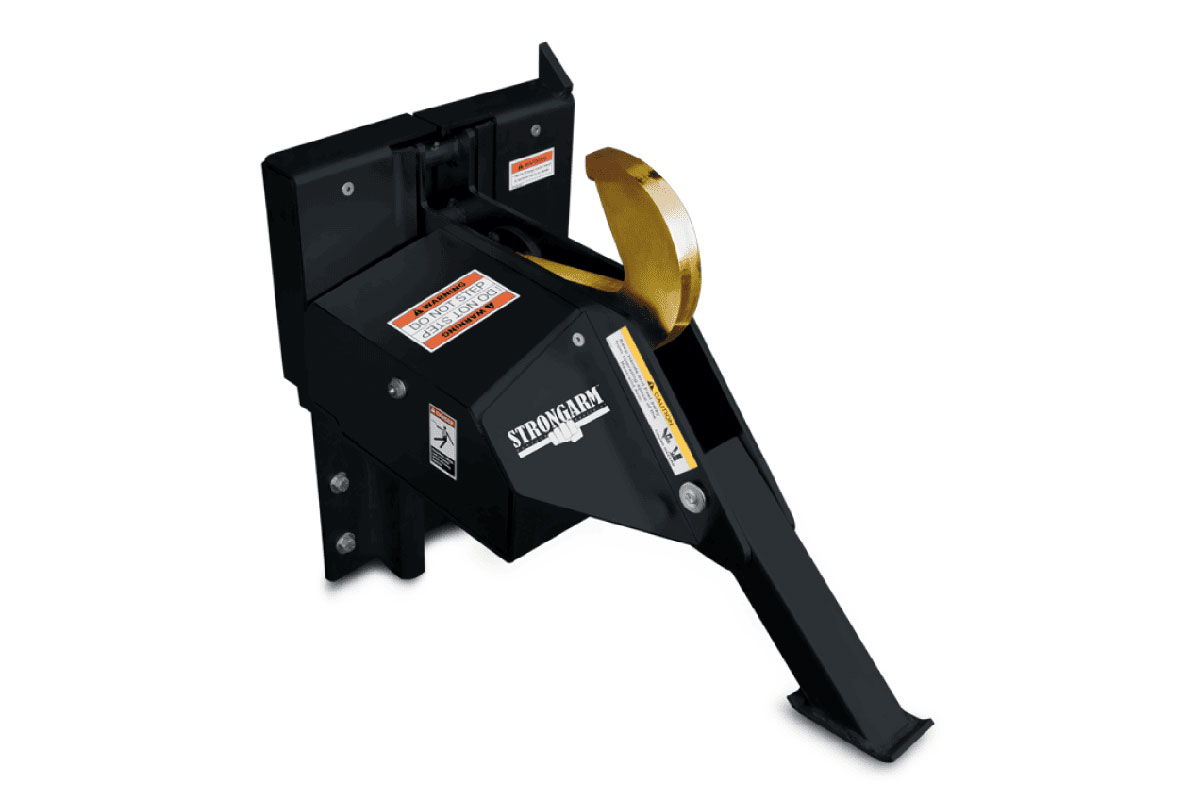

Blue Giant StrongArm HVR303 Trailer Restraint

The wall-mounted StrongArm HVR303 electric vehicle restraint from Blue Giant secures a trailer to the loading dock via an electro-mechanical hook design.

Easy to install and eco-friendly, the HVR303 combines advanced engineering, positive holding ability, and sophisticated touch controls to make your loading dock safer than ever before.

Instant compensation float

With a vertical restraining range of 9 to 26 inches and instant float of 16 inches, the HVR303 can service a wide variety of trailers, including those with bent or damaged rear impact guards (RIGs).

Ability to adjust automatically to trailer motion makes it compatible with air-ride suspension systems, enabling solid engagement and minimizing the risk of separation and worker injury.

Strength you can depend on

With a restraining force of 32,000 pounds, the StrongArm HVR303 helps prevent the dangers associated with unexpected horizontal or vertical trailer movement. Secure gripping and holding capability enables a smooth and fortified bridge between the loading dock and the trailer, keeping cargo, equipment, and forklift operators safer during loading and unloading.

The HVR303 is designed to comply with ANSI standard MH30.3 - Performance and Testing of Vehicle Restraining Devices.

Intelligent touch controls

• The Blue Genius Gold Series II touch control panel features include an LCD menu screen, function buttons, and a flat surface keypad with unique touch sensors
• Interior and exterior LED lights keep drivers and warehouse personnel advised of safety conditions
• Audible alarm built into the control panel alerts the dock attendant to potentially unsafe conditions, such as broken or missing RIG bars
• Audible touch buttons and keypad provide instant sound feedback to user input

Green power

Blue Giant’s StrongArm HVR303 is an environmentally-sustainable alternative to oil-powered hydraulics. It can be interlocked with Blue Giant air-powered dock levelers to build a green loading dock system, allowing builders and developers to qualify for government incentives as well as project the image of an environmentally-responsible business.

Available options include:

• Extension plates
• Zinc finish for extension plates
• Pour-in place bracket for new construction installation

Interested parties can contact Blue Giant’s sales team to learn more information.
