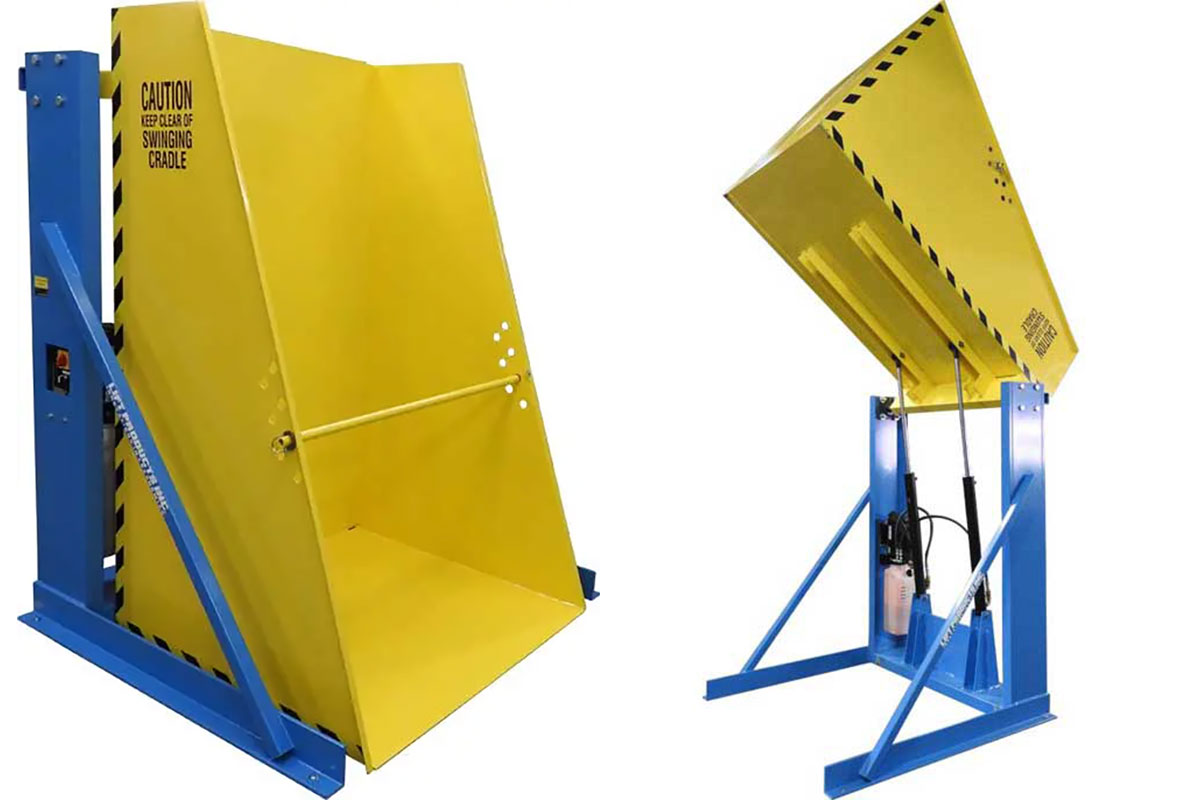

Lift Products LPBD Gaylord Box Dumpers

LPBD Series gaylord box dumpers from Lift Products Inc. can remove excessive lifting and bending in your workflow and reduce the risk of strain injuries.

This fully-powered hydraulic tote dumper provides reliable and stable controlled dumping of materials from gaylord boxes, totes, and crates.

Simple controls designed for LOTO

Operation of the LPBD dumper is simple and secure with a handy on/off rotary-switch that can be locked out so unauthorized personnel cannot turn on the unit.

Containers can be quickly loaded into and out of the chute by use of a common pallet jack, freeing up valuable fork truck resources. Contents dump from the container within one minute, ensuring time and worker efficiency. Rotation of the chute is smooth due to dual flow control valves on the cylinders that evenly distribute the hydraulic fluid between them.

The chute can be adjusted to handle a wide range of container sizes with an easily-changed restraining bar. The heavy-duty all-welded steel construction of the LPBD bolts directly to the floor.

Standard Features

• Load Capacity: 2,000 - 6,000 pounds
• Dump Height: 36, 48, 60, and 72 inches
• Standard chute sizes are 36x36 or 48x 51 inches
• Hydraulic up/gravity down operation
• Rotary switch control activates chute
• Lockable on/off switch
• Structurally-reinforced chute
• Adjustable hold down bar accommodates various container heights of 30 to 42 inches on 2-inch centers
• Heavy duty, all-welded steel construction with durable powder coat finish
• Dual flow control valves

72 inch dump height models in 4,000 and 6,000 pound capacities have chute elevated 12 inches off the floor. Forklift required for loading.

Options

• Custom Chute Sizes
• Custom Dump Heights
• Tapered Chute
• Continuous-Duty Cycle Motor
• Foot Controls
• Hand Controls
• Custom Hold Down Bar Heights

Interested parties can visit Lift Products' website to request a quote.
