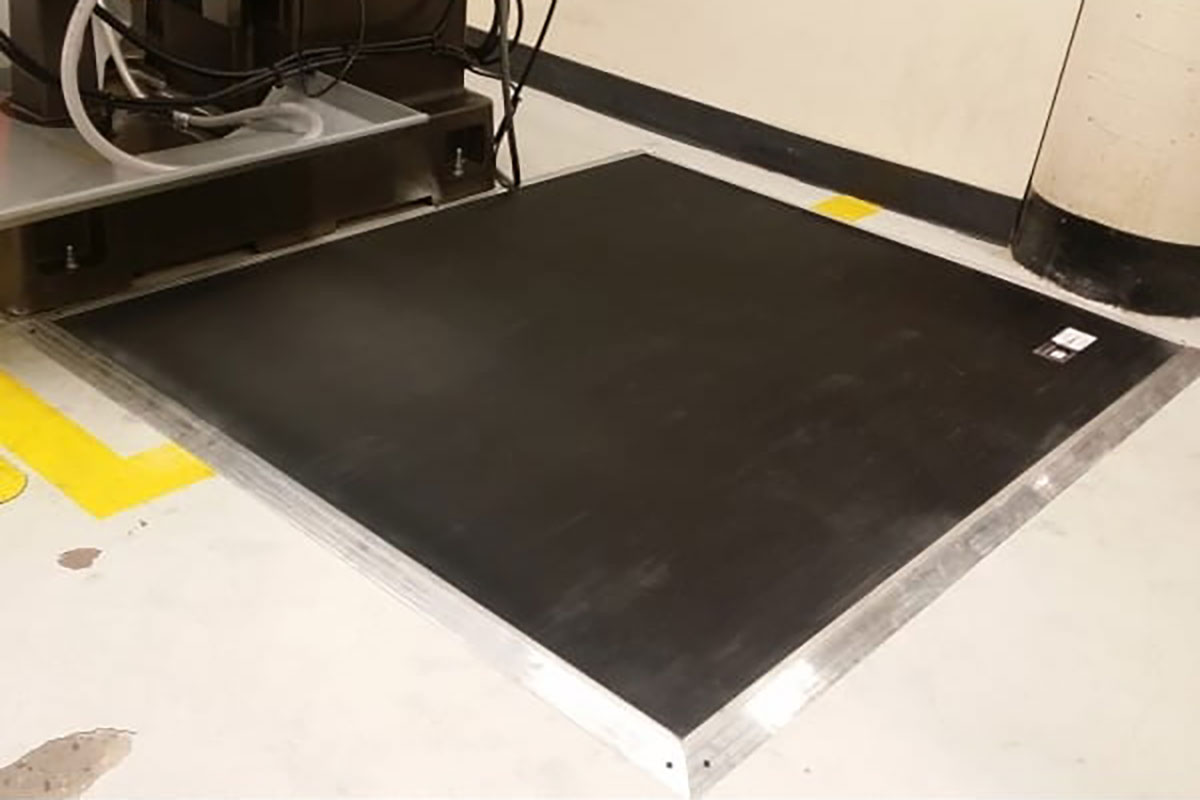

Ferndale Pressure-Sensitive Safety Mats

Pressure-Sensitive Safety Mats from Ferndale Safety detect the presence of people when they step on the mat surface.

These safety mats are ideal for person-sensing around dangerous machinery and equipment in hazardous locations. These pressure-sensitive control mats offer press-at-any-point actuation and are available in standard and custom sizes and shapes.

Protect automatic processes and hazardous areas

Ferndale’s safety mats have been field-tested for over twenty-five years. Their moisture-and abrasion-resistant surface makes them perfect for use in factory settings. The ribbing on the top and bottom surfaces prevents water or oil buildup.

The fully-protected switching elements are highly rugged and reliable, with an operating life of several million cycles. All safety mats come supplied with four-conductor fail-safe wiring.

Ferndale’s safety mats are suitable for various applications, including machine operation control, automated assembly line guarding, robot area guarding, automatic door operation, process cycle control, and general hazardous area guarding.

With its industrial-duty, pressure-sensitive design and long-lasting durability, these mats are the perfect choice for any application.

Specifications

• UL and cUL Recognized
• Actuation Force: 22 pounds nominal with 3.125 inch diameter disc
• Environment: IP65 rated, 32 to 122 degrees Fahrenheit
• Colors: Black (standard), yellow, or blue
• Maximum Size: Up to 48 by 144 inches single-piece construction

Custom sizes and features

1. Ramped edges: Instead of square edges that may be a trip hazard, Ferndale can shave the edges for smooth transitions.
2. Aluminum edges: Aluminum edges with built-in ramps can be screwed to the floor so the mats don’t move.
3. Cable exit: You can choose the length and where the cable exits the mat.
4. Custom shapes & sizes: Ferndale can custom make unique mat shapes instead of standard square or rectangular mats.

Standard lead time is three to five weeks.

Interested parties can visit Ferndale Safety's website to purchase standard sizes, request custom sizes and options, and see up-to-date lead times. Due to size and weight, this product may ship via pallet with truck transport.
