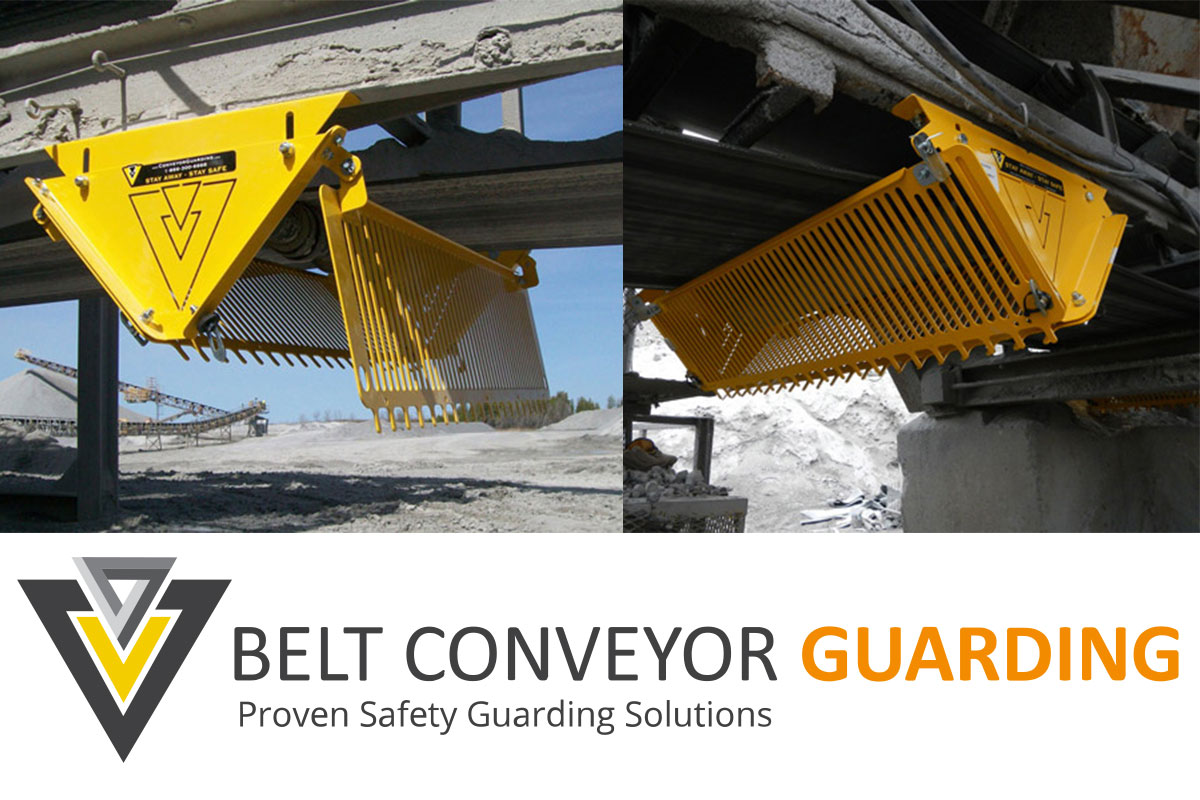

Belt Conveyor Guarding Return Idler Guards

Return Idler Guards from Belt Conveyor Guarding are designed to protect workers from being drawn into return idlers and eliminate access to pinch points.

They easily mount onto existing return idler brackets. Side panels hinge open for guard maintenance. Tapered side slots reduce material built-up.

Easy to install

• Mounts around existing return idler bracket
• Simply drill 4 holes and bolt to conveyor frame
• No need to loosen idler bracket, eliminating belt tracking issues
• No welding or cutting required

Easy to maintain

• Hinged side panels eliminate the need to remove the entire guard during maintenance and clearing
• Smart wedge clamps eliminate the repetitive motion of tightening and loosening fasteners‍
• Tapered side slots reduce material build-up
• Laser-cut identification allows easy reference equipment

Built to last

• Heavy-duty steel construction
• Powder coated for increased durability
• Available in stainless steel or aluminum

Specifications

All guards are 25 inches wide and 16.5 inches longer than the belt width. Bolt spacing is 9 inches wider than the belt width.
